Product family
32 Series — Double-row angular contact
The 32 Series (A design) is a double-row angular contact family that carries combined loads in both directions in one unit — useful where a pair of single-row bearings would be too wide. ZZ shields and 2RS seals are listed; grease fill and clearance to order.
| Model | d | D | B | Closure | Mass | |
|---|---|---|---|---|---|---|
| 3204A | 20 | 47 | 20.6 | ZZ / 2RS | 150 g | View details |
| 3205A | 25 | 52 | 20.6 | ZZ / 2RS | 190 g | View details |
| 3206A | 30 | 62 | 23.8 | ZZ / 2RS | 290 g | View details |
| 3208A | 40 | 80 | 30.2 | ZZ / 2RS | 650 g | View details |
Dimensions are cross-checked against GB/T 276 and ISO 15 boundary dimensions. Load ratings and limiting speeds are available on the datasheet on request.
Structure

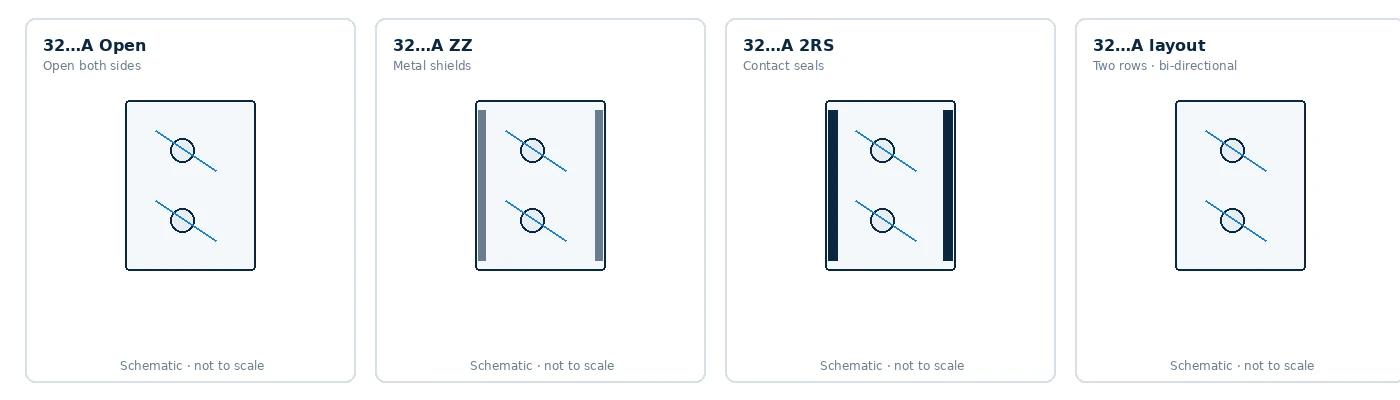

Contact angle & arrangements
C = 15°, AC = 25°, B = 40°. Matched pairs are available as DB (back-to-back), DF (face-to-face) or DT (tandem).
Need this family in a custom clearance or noise grade?
Closures, clearance, precision, grease and marking can be specified per order. Send the drawing or the operating conditions.
